Linux is just now making a significant impact on the computing industry, but it has been a powerful tool for computer scientists and computational scientists for a number of years. Aside from the obvious benefits of working with a freely-available, reliable, and efficient open source operating system [1], the advent of Beowulf-style cluster computing--pioneered by Donald Becker, Thomas Sterling, et. al., [2] at NASA's Goddard Space Flight Center--extends the utility of Linux to the realm of high performance parallel computing. Today, these commodity PC-based clusters are cropping up in federal research laboratories, industrial R&D centers, universities, and even small colleges [3, 4]. If a computational problem can be solved in a loosely-coupled distributed memory environment, a Beowulf cluster--or Pile of PCs (POP)--may be the answer; and it "weighs in" at a price point traditional parallel computer manufacturers cannot touch.
|

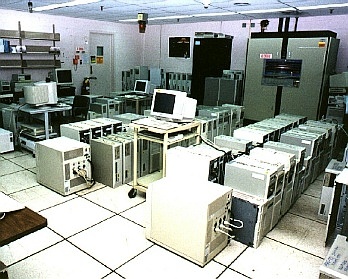

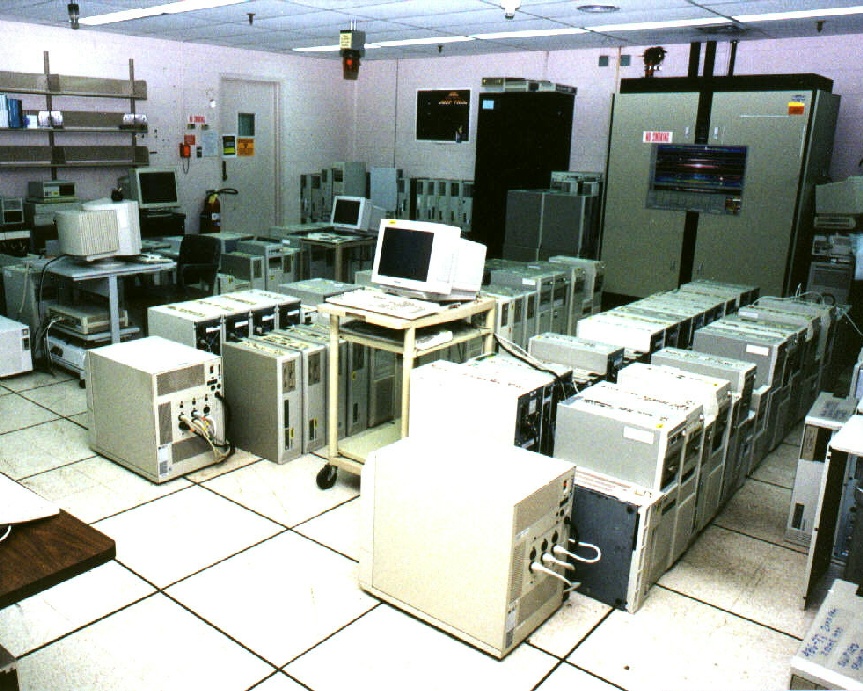

| Figure 1: The Stone SouperComputer at Oak Ridge National Laboratory. |
We became involved in cluster computing more than two years ago after developing a proposal for the construction of a Beowulf cluster to support a handful of research projects. The proposal was rejected, but because we had already begun development of a new high-resolution landscape ecology application, we decided to build a cluster out of surplus PCs (primarily Intel 486s) destined for salvage. We began intercepting excess machines at federal facilities in Oak Ridge, Tennessee, and processing them into usable nodes. By September 16, 1997, we had a functional parallel computer system built out of no-cost hardware. Today we have a constantly-evolving 126 node highly heterogeneous Beowulf-style cluster--called the Stone SouperComputer (see Figure 1)--which is continuously upgraded as better hardware becomes available and which is used for algorithm development and for running parallel applications. For more information about the Stone SouperComputer see Hoffman and Hargrove [3] or visit our World Wide Web (WWW) site at www.esd.ornl.gov/facilities/beowulf.
Anyone can construct a parallel computer adequate for teaching parallel programming and running parallel codes--often using existing or excess PCs. PCs in an established computer laboratory can be adapted for dual use, dual-boot systems so that they can be rebooted into either Linux or Microsoft Windows, depending on the present need. Alternatively, unused equipment can be collected and fashioned into a parallel system as we have done.
No two Beowulf clusters are the same. In fact, their hardware and software configurations are so flexible and customizable that they present a wide array of possibilities. In this tutorial, we hope to provide some guidelines and considerations for narrowing this wide field of choices. While every Beowulf cluster is different and configurations are dictated by application needs, some minimum requirements can be specified.
A node should contain at least an Intel 486 CPU and motherboard. Intel 386 processors will work, but performance is so poor it's hardly worth the effort. Memory requirements are dependent on the target application's data requirements and parallelism, but a node should have at least 16 MB of memory. Most applications will need 32 MB or more per node. Some clusters are configured with centralized disk space so that nodes boot from a floppy disk, a small hard drive, or via the network, and access their root partitions from a file server over the network, usually via Network File System (NFS). This configuration works best in an environment where high bandwidth connectivity and a high performance file server are available. For best performance under other conditions, local disk space for the operating system, swap space, and data should be available on each node. Each node should have at least 200 MB of disk space for operating system components and swap space, but 400 MB or more allows for some free space which may be used by applications at run time. At least one Ethernet or Fast Ethernet network interface must be included in each node. Alternatively, higher performance interconnects, including Gigabit Ethernet and Myrinet, could be used in conjunction with faster CPUs. Finally, any video card, a floppy disk drive, and a case and power supply round out a functional node. Keyboards and monitors are required only for the initial loading and configuration of the operating system, unless the individual machines are used interactively in addition to serving as nodes in the parallel system.
It is necessary for all the chosen hardware components to be supported by drivers or modules in Linux. Generally this is not a problem if the hardware is more than a few months old. Many sources of information about supported hardware are available on the WWW (see Resources below). Of particular interest is Donald Becker's fairly complete set of drivers and excellent documentation for a wide variety of network interface cards. Video card support is not important on nodes since they do not usually run an X server; however, the master node may be used for managing the cluster and an X server would be handy for this machine. If a particular component presents a problem, Usenet news groups can be used to inquire about hardware supported by Linux.
If possible, the nodes should be isolated on a private local area
network with their own Ethernet hub or switch. This will keep normal
network traffic from interfering with inter-node communication and vice
versa. In order to further increase inter-node bandwidth, additional
network interface cards can be installed in nodes and Channel Bonding
software available at www.beowulf.org can be used to
operate parallel communication networks. The first or master node in
the cluster should have an additional Ethernet card so that it can be
connected to the normal, routed network as well as to the private
network. This is useful for user logins and file transfers. On the
private network, it is necessary to use a block of IP addresses that
are not used elsewhere on the Internet. It is usually easiest to use
the Class A 10.0.0.0 address space which is reserved for
non-routed networks such as these. In this case, the
/etc/hosts file on each node would appear as shown in Table 1 and the /etc/hosts.equiv file
on each node would appear as shown in Table 2.
An example ifcfg-eth0 configuration file (used by Red Hat
Linux) for node number 2 is shown in Table 3.
10.0.0.1 node1 |
node1 |
DEVICE=eth0 |
In addition, it is often desirable to have a Domain Name Server (DNS) available, particularly if node names or addresses are likely to change on the private network. DNS can be run on the first node to provide name/address resolution for the nodes on the private network.
At the point of loading the operating system, Beowulf builders must commit to a number of storage configuration decisions. These decisions merit careful forethought, since changes require re-installing all nodes. The majority of Linux-based Beowulf clusters are running the Red Hat Linux distribution, but any distribution should support basic clustering. Optional kernel patches for providing a Global PID space and other tweaks were engineered primarily for Red Hat, but these features are not required for parallel computing. Loading Red Hat is fairly straightforward and can be accomplished via a CD-ROM or the network interface from the Internet or from the first node in the cluster, which would have to keep a copy of the distribution at the ready. We have found it beneficial to actually load the operating system onto the disks of each node via FTP from the primary node instead of mounting root partitions via NFS. Thus we sacrifice some convenience in maintenance for better run-time performance. This practice eliminates unnecessary network traffic, preserving bandwidth for message passing while applications are running.
The Red Hat Linux run-time environment requires only about 100 MB of disk space on each node; however, we find it useful to include compilers and other utilities on all nodes so that parallel compiling is possible. Therefore, our configuration requires about 175 MB of disk space for the operating system. While some clusters are setup to swap on a file on the regular filesystem, it is more efficient to use a dedicated swap partition on a local disk for virtual memory. It is generally accepted that a reasonable amount of swap space is twice the size of available memory up to 64 MB. For nodes with greater than 64 MB of memory, swap space should be equal to the amount of memory. In practice, one may wish to allocate 128 MB of swap for a memory size of 64 MB through 128 MB. As a result, if a prospective node with 32 MB of memory has two 202 MB disk drives, one would load Linux onto the primary drive (as a single partition) and use the secondary drive for swap space (64 MB) and local run-time space (138 MB).
System management and maintenance can be tedious, particularly for
large clusters; however, a number of utilities and scripts are
available on the WWW to assist with this task (see Resources below). For example, the nodes must be
kept "in-sync" with each other with respect to time and systems files
(e.g., /etc/passwd, /etc/group,
/etc/hosts, /etc/hosts.equiv, etc.). Simple
shell scripts executed regularly by cron can take care of
the majority of synchronization.
Once all the nodes are loaded and configured, parallel applications can be designed and developed to take advantage of the new system.
Both commercial and free compilers are available for Linux. The GNU Project's C (gcc), C++ (g++), and FORTRAN (g77) compilers are included with most standard Linux distributions. The C and C++ compilers are excellent and the FORTRAN compiler is constantly improving. Commercial compilers are available from Absoft, The Portland Group (PGI), The Numerical Algorithms Group (NAG), and others. Some of the commercial FORTRAN-90 compilers will automatically parallelize some operations if set up properly. In general, though, developing parallel code will require explicit message passing between processors using PVM (Parallel Virtual Machine), MPI (Message Passing Interface), or another communications library. Both PVM and MPI are freely available and allow the programmer to easily define the nodes used for running a parallel code and to pass data between nodes during computation using simple library calls.
Of course, not every computational task is amenable to parallelization. Often, completely new strategies for solving computational problems must be developed in order to take advantage of parallelism. In fact, it may be necessary to step back from algorithms in existing serial code in order to conceive of the most scalable parallel approach. Many scientific problems can benefit from domain decomposition: a splitting up of space or time into relatively independent chunks which can be processed on separate nodes in a cluster. For instance, image processing tasks can often be subdivided so that each node works on a section of a single image. This approach works particularly well if sections in an image are processed independently (i.e., processing a section does not require information about other sections) or if the radius of influence for each section is predetermined and constant.
One under-appreciated technique for jumping into the world of parallel computing with almost no code development is to employ a "poor man's parallelism," i.e., multiple serial codes running simultaneously on multiple nodes. This "multiply up" strategy, because it has no communication between processes, is perfectly scalable, and yields significant performance advantage with little additional effort.
One of the most dangerous pitfalls--whether one is parallelizing existing code or developing new parallel code--is turning a computational problem into a communications problem. This can happen when the problem is over-divided such that the time it takes to communicate data between nodes and to synchronize the nodes exceeds the actual CPU computing time. In this case, using fewer nodes may result in better run times and more efficient utilization of resources. This trade-off between local computational load on a node and communications to coordinate efforts among nodes must be optimized for every parallel application.
Finally, cluster heterogeneity plays an important role in developing parallel algorithms. Factors of two or more between node CPU speeds are significant when running parallel applications. If the work is simply distributed evenly over all CPUs in a heterogeneous cluster, the faster CPUs must wait for the slower CPUs to complete their part of the overall task. Properly designed algorithms can handle this heterogeneity by over-dividing the task and "dealing out" new aliquots as nodes complete previously assigned aliquots. Of course, this approach must be balanced by considering communications overhead.
Parallel processes can be organized in many different ways, but the master/slave organization is the easiest to understand and program. In a master/slave organization, one node serves as process master while the other nodes serve as slaves. The master node usually decides how to divide up the work and generally "directs traffic" while the slave nodes process their assigned aliquots and "report in" when finished. Variants of this organization include a master-less approach in which all nodes perform the same tasks or a hierarchical approach in which multiple tiers work together or report to a super-master. The best approach is determined by the algorithm or application needs.
Source code can be organized in different ways as well. In a master/slave processing organization, one might develop one set of source code for the master and another set for the slaves. This was common practice on early parallel systems, but today the Single Program Multiple Data (SPMD) method is the most popular and often easiest to maintain. With SPMD, a single set of source code is developed so that one binary is executed on all nodes. The program branches depending on the desired functionality of each node; masters perform one set of operations while slaves perform another.
Many approaches are possible for the organization and distribution of data used by parallel codes. One possibility is to serve data to all nodes via a central NFS server. However, if several nodes attempt to access the data simultaneously, this strategy will lead to network contention. One alternative is to pass chunks of data between nodes using message passing, but this also puts a heavy load on the network depending on the size of the data and nature of the problem. Another alternative is to distribute the data to local disks on all nodes prior to run time. This manual distribution of the data to all nodes leaves the network clear for actual message passing during run time. Similarly, the nodes can assemble the answers and store the results centrally, or results may be stored locally and harvested after the completion of the run. We have found this "distribute and harvest" approach to be particularly useful.
There are no hard and fast rules about either building a machine or developing parallel code because it depends on your application. Optimizing hardware configurations and algorithm approaches cannot be predicted without knowing specific details about your application. In a shared or heterogeneous system, optimizing the balance between the load on nodes and the communication between nodes depends on the nature of the hardware. Faster communication encourages finer division of the task, while coarser division is favored by having faster nodes.
The "Beowulf movement" has brought parallel computing to the grass-roots level. Parallel codes developed on Beowulf systems using standard message passing libraries can be run without modification on commercial supercomputers. Thus, Beowulf clusters represent an entry point and later a bridge to even the largest supercomputers in the world. Further, the availability of inexpensive, commodity clusters means that parallel computer environments can be dedicated to specific tasks, unlike large commercial supercomputers which are too expensive to dedicate and cannot be optimized for any single application. As parallel environments become increasingly available to programmers, the collective experience gained will promote parallel applications in every field of endeavor.
|
|
